Retractable Drop Shape Anti-theft Pull Box for Shop

PYETS Retractable Drop Shape Anti-theft Pull Box for Shop is available for retail display procurement where a compact retractable tether is required for product positioning and anti-loss protection. The PY-99 combines an ABS housing, 90 cm nylon-sheathed stainless-steel rope, SUS301 stainless-steel spring, magnets, and dual mounting methods in a 50 g assembly.

Features

Compact ABS Pull Box

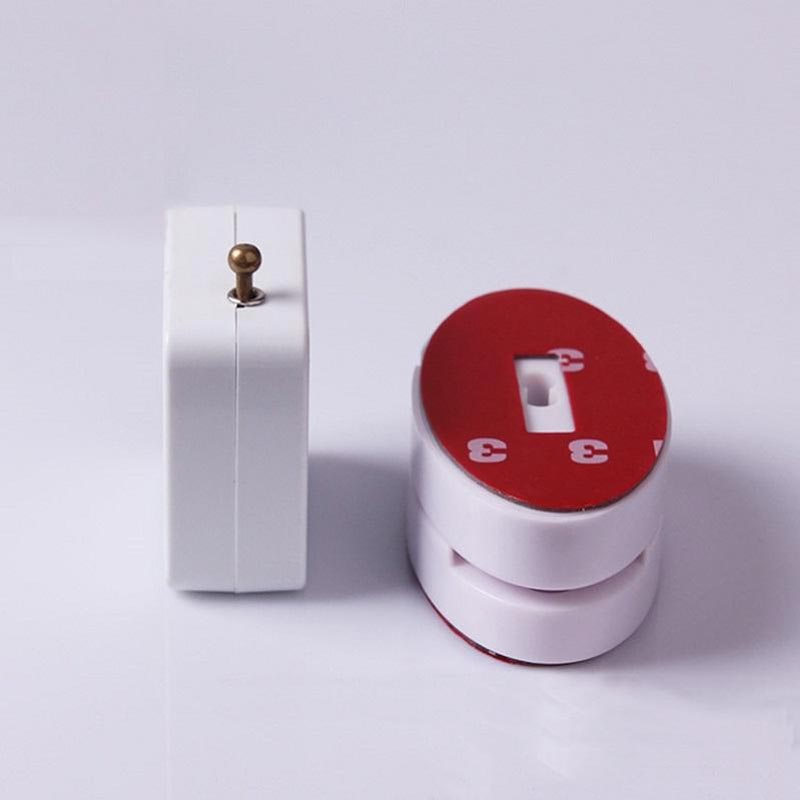

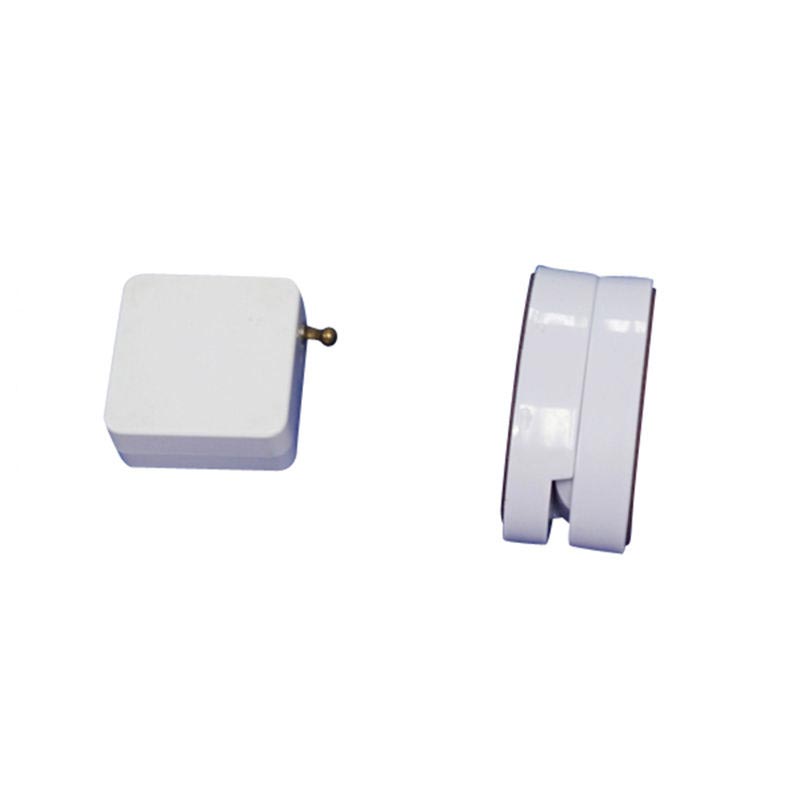

The PY-99 has a 5.5 × 3 × 2.3 cm ABS housing in white or black. Its compact enclosure accommodates the internal retraction mechanism while keeping the cable assembly close to the mounting surface.

The drop-shape housing is suited to countertop displays where the security accessory needs to occupy limited space without becoming a dominant part of the presentation.

Retractable Stainless-Steel Cable

A SUS301 stainless-steel spring provides the retraction mechanism, while the cable uses stainless-steel rope with a nylon sheath. The standard rope length is 90 cm, allowing displayed items to be pulled away from their fixed position for handling and then returned toward the pull box.

The retractable construction is applicable to repeated product handling, wire positioning, and controlled movement in retail display equipment.

Two Mounting Methods

The PY-99 supports adhesive and screw installation. The supplied 3M adhesive provides a drill-free mounting method, while the housing incorporates fixing holes for screw attachment.

This dual mounting structure accommodates different retail counter constructions and installation requirements.

Configurable Cable Assembly

The PY-99 series Retractable Drop Shape Anti-theft Pull Box for Shop supports options for cable exit position, retraction force, cable length, and cable diameter. The connection end uses a brass ball-shaped pin for attachment to displayed items.

OEM and ODM development can also cover product design, logo, label, packaging, cable length, housing color, and connector configuration.

Technical Specifications

Applications

Mobile and Electronic Product Displays

The retractable pull box is suitable for mobile phones, digital cameras, computers, handheld electronic devices, and other small electronics displayed in open retail environments. The tether allows the displayed item to be handled while maintaining its connection to the fixed display position.

Smart Watches and Small Merchandise

The compact 50 g housing can be incorporated into displays for smart watches, sunglasses, perfumes, and other small merchandise. The retractable cable keeps excess tether close to the housing when the displayed item is returned to its position.

Wire and Signage Positioning

The recoiler can also be integrated into wire-harness positioning, equipment counterbalancing, signage support, and controlled product or parts feeding. These applications extend the PY-99 beyond conventional anti-loss display use.

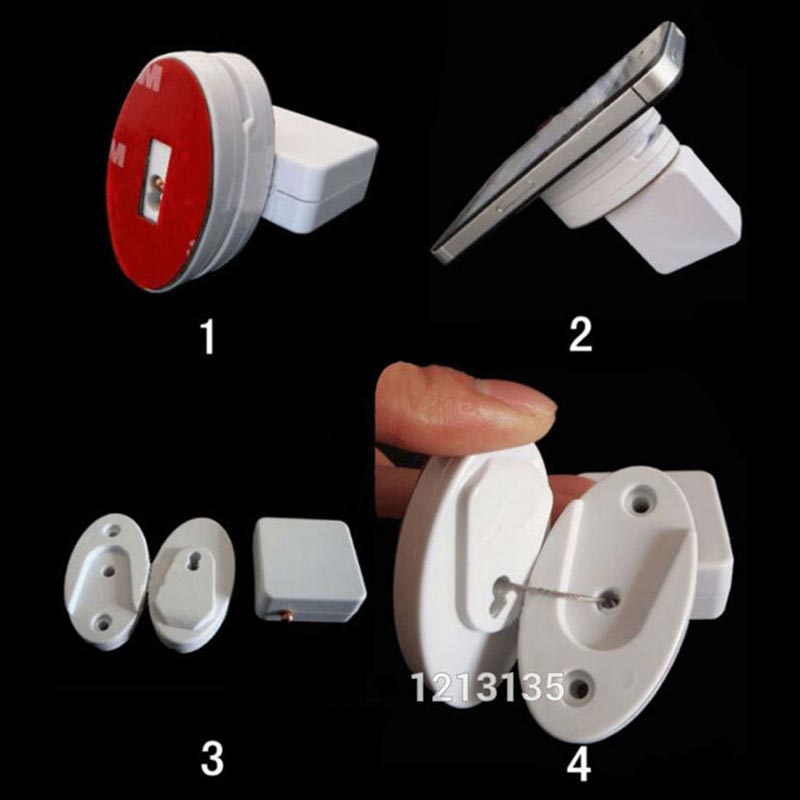

Installation

Adhesive Mounting

The 3M adhesive provides a drill-free installation method for suitable display surfaces. The pull box is fixed to the selected position, and the brass ball-shaped pin is connected to the displayed item.

Screw Mounting

The housing can also be secured through its fixing holes when a mechanical attachment is required. The cable is then routed between the pull box and the displayed item.

Display Integration

Once installed, the retractable mechanism keeps the stainless-steel cable close to the housing when the connected item is returned to its display position. The 90 cm standard cable provides the movement length of the standard configuration.

Cable Configuration

The Retractable Drop Shape Anti-theft Pull Box for Shop offers several configuration possibilities for retail display applications. Cable length and diameter can be adjusted for different product positions, while cable-exit location and retraction force can be configured within the series.

The standard PY-99 specification uses a 90 cm stainless-steel rope, ABS housing, and brass ball-shaped connector. These parameters establish the base configuration for OEM and ODM development.

PYETS Manufacturing Capability

Retail Anti-Theft Production Experience

Ningbo Pyets Electronic Technology Co., Ltd. has manufactured commodity anti-theft hooks, electronic equipment anti-theft devices, mobile phone tray display stands, steel wire pullers, and open display equipment since 2011.

Its product range covers anti-theft and display hardware for mobile phones, digital cameras, computers, handheld electronic devices, and smart wearables.

Injection Molding and Hardware Processing

PYETS operates a production workshop of more than 3,000 square meters in Ninghai, Zhejiang Province. The factory has 10 injection molding machines ranging from 150 g to 500 g and 15 high-precision punching machines ranging from 5.5 tons to 80 tons.

The production facility also includes mold-processing equipment, automated production lines, and testing instruments. Production covers mold development, injection molding, hardware processing, assembly, and inspection.

Product Development

More than 50 employees work across production and technical functions, including more than 10 industrial designers, structural designers, software and hardware developers, and testers.

PYETS independently develops anti-theft brackets, anti-theft hooks, anti-theft alarms, and steel-wire pull-box anti-theft devices and holds more than 30 invention and utility patents in these product categories.

The factory implements a 5S on-site management system throughout its production operations.

OEM & ODM

PYETS accepts OEM and ODM projects involving product structure, logo, label, packaging, cable length, housing color, and connector configuration.

The company also maintains more than 100 phone, tablet, and laptop holder designs, providing an existing product base for electronic display hardware development.

Its cooperative cases include Apple, Huawei, Xiaomi, OPPO, vivo, and Samsung mobile phone stores.

Frequently Asked Questions

What is the standard cable length?

The PY-99 standard configuration uses a 90 cm stainless-steel rope with a nylon sheath.

What materials are used?

The housing is ABS, the retracting spring is SUS301 stainless steel, and the cable is stainless-steel rope with a nylon sheath. The assembly also incorporates magnets, adhesive tape, and a brass ball-shaped connector.

Can the pull box be installed without drilling?

Yes. The standard configuration includes 3M adhesive mounting, while screw fixing is also supported through the housing's fixing holes.

What products can be connected to the recoiler?

The PY-99 can be used with mobile phones, digital cameras, computers, handheld electronic devices, smart watches, sunglasses, perfumes, and other small display items.

What can be customized?

PYETS supports customization of product design, logo, label, packaging, cable length, housing color, and connector type. The PY-99 series also provides options for cable diameter, cable-exit position, and retraction force.

PYETS Retractable Drop Shape Anti-theft Pull Box for Shop provides a compact retractable tether for retail display equipment, with a 5.5 × 3 × 2.3 cm ABS housing, 90 cm stainless-steel cable, SUS301 spring, brass ball connector, and adhesive or screw mounting. PYETS combines injection molding, hardware processing, mold development, assembly, and testing for retractable anti-loss and display hardware.
